Mandibular Canine

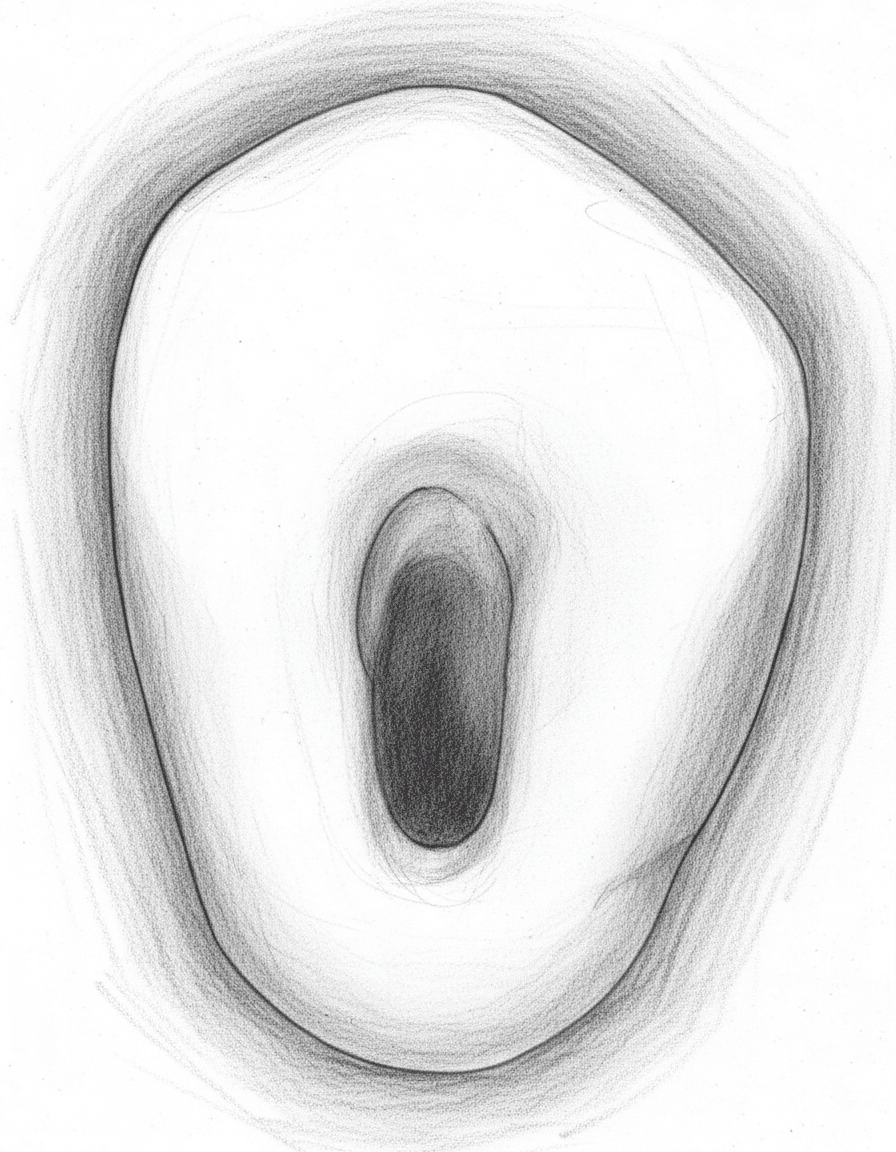

Mandibular Canine - Axial View showing ovoid access cavity

Average Length25.6 mm

Root Development14 years

Universal #22, 27

FDI #33, 43

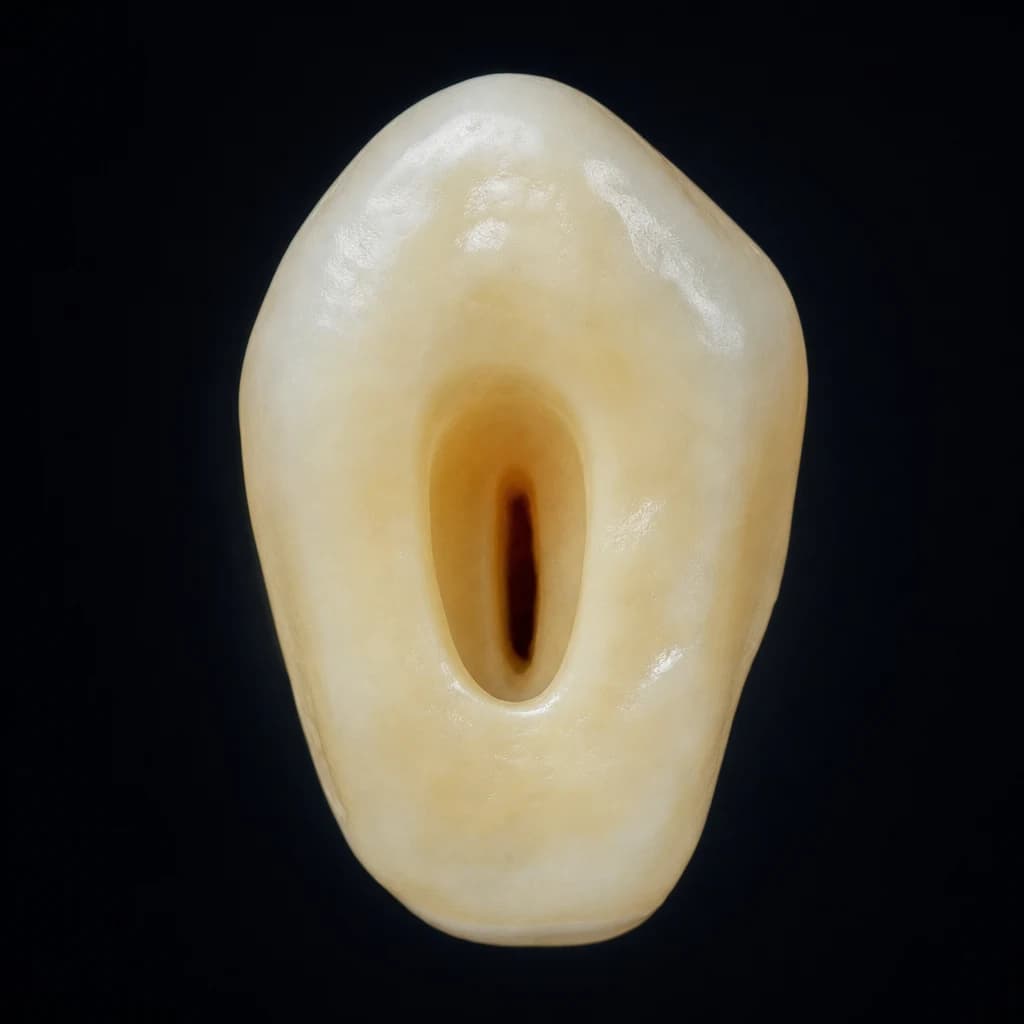

Access Cavity Design

ShapeOvoid

OrientationBuccolingual; extend linguo-cervically into cingulum to explore for lingual canal

Entry PointCenter of lingual surface, at or just above cingulum

Landmarks

Cingulum as inferior boundary of access
Cusp tip as superior reference

Do Not Invade

Cusp tip (preserve heavily functioning cusp)
Labial wall (maintain dentin thickness)

Canal Anatomy

Configurations

Single canal (Vertucci Type I)80-98%

Two canals, one root (Vertucci Type II/III)5-20%

Two roots with two canals<3% Caucasian; up to 15% Asian

Canal Positions

MCMain Canal

Ovoid at cervical, oval/long-oval at mid-root, round at apex

BBuccal Canal

Easier and straighter when 2 canals present

LLingual Canal

Shielded by lingual shelf — more prominent than in mandibular incisors

Danger Zones

⚠Distal root wall — thinnest dentin, strip perforation risk during shaping
⚠Buccal bone fenestration (~16-22%) — lower than maxillary canine but still significant
⚠Exceptional length (avg 25.6 mm, up to 30 mm) — instrument fatigue risk

Clinical Tips

⚠️

Warning

Longest mandibular tooth (avg 25.6 mm, up to 30 mm) — may require 31 mm instruments

🔧

Technique

Extend access linguo-cervically into cingulum to locate potential lingual canal (5-20% prevalence)

🔧

Technique

Oval/long-oval canal at mid-root — directional (anti-curvature) instrumentation needed, not just rotary

💡

Tip

Lingual shelf more prominent than in mandibular incisors — requires more aggressive removal for exploration

Anatomical Variations

Two Canals, Single Root (Type II/III)

5-20%

Buccal and lingual canals within single root. Lingual canal shielded by prominent lingual shelf.

Access Modification: Extend access linguo-cervically; remove lingual shelf with ultrasonics under magnification

Two Roots with Two Canals

<3% Caucasian; up to 15% Asian

Bifurcation into buccal and lingual roots with separate canals. Significant ethnic variation — much higher in Asian populations.

Access Modification: Extended buccolingual access to locate both orifices; CBCT recommended for root mapping

Access Cavity Design

ShapeOvoid

OrientationBuccolingual; extend linguo-cervically into cingulum to explore for lingual canal

Entry PointCenter of lingual surface, at or just above cingulum

Landmarks

Cingulum as inferior boundary of access
Cusp tip as superior reference

Do Not Invade

Cusp tip (preserve heavily functioning cusp)
Labial wall (maintain dentin thickness)

Canal Anatomy

Configurations

Single canal (Vertucci Type I)80-98%

Two canals, one root (Vertucci Type II/III)5-20%

Two roots with two canals<3% Caucasian; up to 15% Asian

Canal Positions

MCMain Canal

Ovoid at cervical, oval/long-oval at mid-root, round at apex

BBuccal Canal

Easier and straighter when 2 canals present

LLingual Canal

Shielded by lingual shelf — more prominent than in mandibular incisors

Danger Zones

⚠Distal root wall — thinnest dentin, strip perforation risk during shaping
⚠Buccal bone fenestration (~16-22%) — lower than maxillary canine but still significant
⚠Exceptional length (avg 25.6 mm, up to 30 mm) — instrument fatigue risk

Clinical Tips

⚠️

Warning

Longest mandibular tooth (avg 25.6 mm, up to 30 mm) — may require 31 mm instruments

🔧

Technique

Extend access linguo-cervically into cingulum to locate potential lingual canal (5-20% prevalence)

🔧

Technique

Oval/long-oval canal at mid-root — directional (anti-curvature) instrumentation needed, not just rotary

💡

Tip

Lingual shelf more prominent than in mandibular incisors — requires more aggressive removal for exploration

Anatomical Variations

Two Canals, Single Root (Type II/III)

5-20%

Buccal and lingual canals within single root. Lingual canal shielded by prominent lingual shelf.

Access Modification: Extend access linguo-cervically; remove lingual shelf with ultrasonics under magnification

Two Roots with Two Canals

<3% Caucasian; up to 15% Asian

Bifurcation into buccal and lingual roots with separate canals. Significant ethnic variation — much higher in Asian populations.

Access Modification: Extended buccolingual access to locate both orifices; CBCT recommended for root mapping

Vertucci Classification

Type	Description	Prevalence
I	Single canal (1-1)	80-98%
II	Two canals merging (2-1)	5-15%
III	One-two-one (1-2-1)	1-5%

Special Morphology

Lingual Shelf (Prominent)

Present in most mandibular canines

More prominent and convex than in mandibular incisors. Shields lingual canal orifice more effectively.

Requires more aggressive removal than in incisors. Ultrasonics under magnification recommended for controlled dentin removal.

Root Curvature

Single root

Buccal or distal (when present)~60% straight; remainder mild-moderate curvature; severe curvature rare but documented

Apical Foramen DeviationAverage deviation 0.77 mm from radiographic apex; ~67% have centrally positioned foramina

Perforation Risks

Distal root wall (thinnest dentin)

Moderate

✓Anti-curvature filing toward thicker mesial/buccal wall
✓Conservative taper (.04) in oval canal sections
✓Flexible NiTi files for mid-root preparation

Labial wall (during access preparation)

Low

✓Direct bur toward lingual during initial access
✓Assess crown-root angulation on pre-op PA

Calcification Pattern

LikelihoodModerate in patients >50 years; common after trauma

LocationPulp chamber and coronal third of canal

ManagementLong-shanked burs for deep chamber; EDTA gel; small pre-curved files (#08, #10); patience due to canal length

Procedural Risks

Missed lingual canal

Moderate (5-20% have two canals)

Prevention

✓Extend access into cingulum
✓Remove prominent lingual shelf with ultrasonics
✓Angled radiograph (SLOB) for detection
✓Magnification improves detection significantly

Management

Re-entry with magnification; aggressive lingual shelf removal

Instrument fatigue/separation (long canal)

Moderate — similar risk to maxillary canine

Prevention

✓Monitor NiTi file usage cycles
✓Use flexible heat-treated files (Gold, Blue, CM-wire)
✓Ensure glide path before rotary
✓Consider 31 mm instruments for long canines

Management

Assess fragment location; attempt bypass or ultrasonic retrieval

Pre-Op Checklist

Measure root length on pre-op PA — may exceed 28 mm; plan instrument length

Angled radiograph to detect second canal or root bifurcation

Consider patient ethnicity: Asian = higher two-root risk (up to 15%)

Assess root curvature — mostly straight but check apical third

CBCT Indications

•Suspected two-root variant (especially in Asian patients)
•Complex anatomy not assessable on PA
•Pre-surgical planning (apicoectomy) — fenestration assessment
•Retreatment with persistent pathology

File System Recommendations

Scenario

Standard single canal (majority)

25 mm instruments; .04-.06 taper; oval cross-section at mid-root may need directional filing

Scenario

Exceptionally long canine (>28 mm)

31 mm instruments required; monitor instrument fatigue closely

Scenario

Two canals (one root or two roots)

Small flexible files (20/.04) for each canal; ultrasonics for lingual shelf removal

Common Mistakes

✗

Using 21 mm instruments — too short for most mandibular canines

✗

Missing lingual canal — not removing the prominent lingual shelf

✗

Ignoring ethnic variation in two-root prevalence (up to 15% in Asian patients)

✗

Over-preparation of oval mid-root section — strip perforation on distal wall

✗

Not accounting for instrument fatigue in this long canal

Referral Indicators

►Suspected two-root variant requiring CBCT and microscope
►Calcified canal not negotiable clinically
►Instrument separation in deep apical third
►Complex retreatment with persistent symptoms
