MaxillaryTriangular

Maxillary First Molar

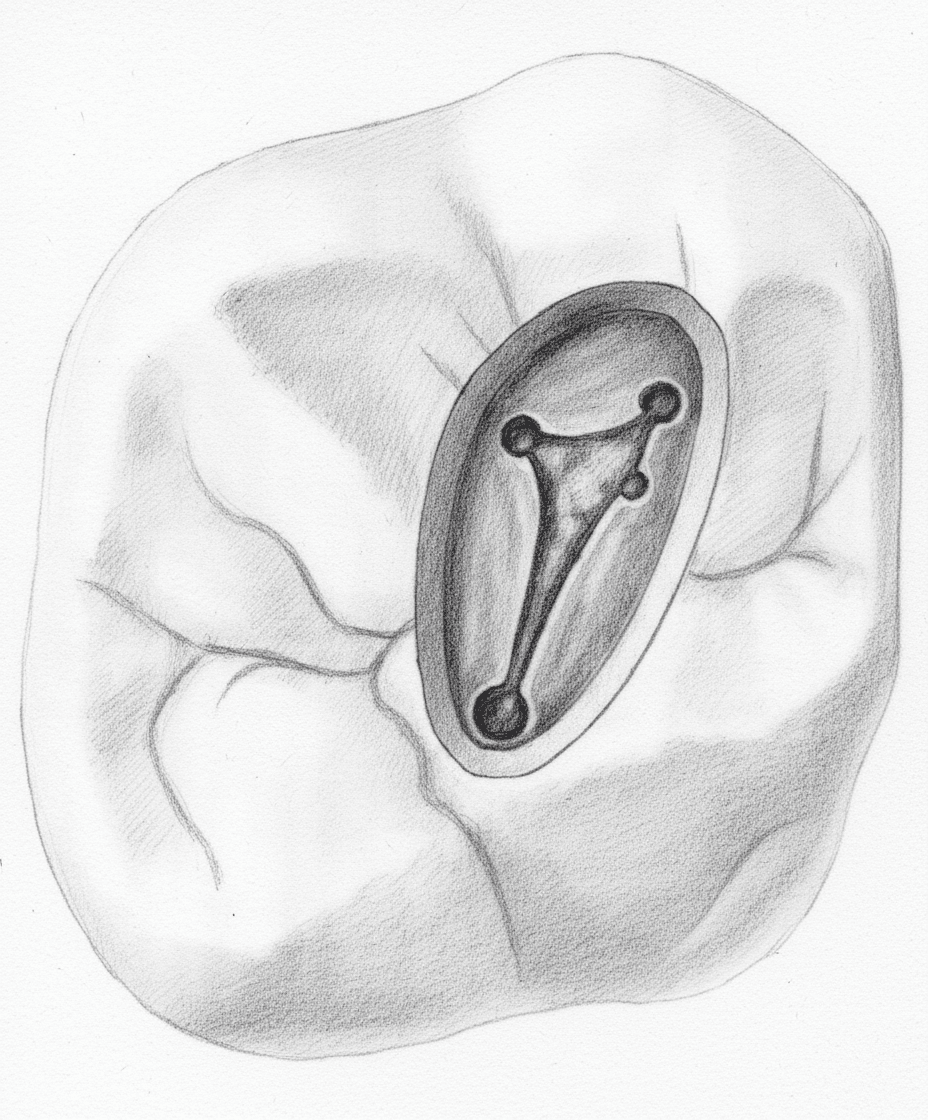

Maxillary First Molar - Axial View showing triangular/rhomboidal access with MB1, MB2, DB, and palatal canal orifices

Average Length21.0 mm

Root Development10 years

Universal #3, 14

FDI #16, 26

Access Cavity Design

ShapeTriangular/Rhomboidal

OrientationVertices at MB, DB, and P; extend mesially for MB2

Entry PointCentral pit, mesial two-thirds of occlusal surface

Landmarks

Central pit
MB-DB-P triangle

Do Not Invade

Mesial marginal ridge
Oblique ridge

Canal Anatomy

Configurations

4 canals (MB1, MB2, DB, P)~70%

3 canals (MB, DB, P)~30%

Canal Positions

MB1Mesiobuccal 1

Slightly distal to MB cusp tip

DBDistobuccal

Distal and slightly palatal to MB1, in line with buccal groove

PPalatal

Distal to mesiopalatal cusp tip - largest canal

MB2Mesiobuccal 273.8% (CBCT), 71-82% (with microscope)

2 mm palatal and 1-2 mm mesial from MB1

Clinical Tips

🔧

Technique

Rule of 2: MB2 is approximately 2 mm palatal to MB1 (range 2-3.5 mm palatally, ~2 mm mesially) — a clinical starting point for exploration

🔧

Technique

Champagne/Bubble Test: NaOCl effervesces at orifice with organic tissue

🔧

Technique

Use ultrasonic diamond tips (E2D, E6D) for troughing MB-MB2 isthmus

💡

Tip

Dental microscope significantly improves MB2 detection — from ~17% (no magnification) to ~71% (microscope) in comparative studies

Anatomical Variations

MB2 Canal

60-93% (CBCT); ~64-74% in meta-analyses

Second canal in mesiobuccal root, often calcified in older patients. Prevalence varies by study methodology and population.

Access Modification: Convert triangular to rhomboidal shape by extending mesiobuccally

Access Cavity Design

ShapeTriangular/Rhomboidal

OrientationVertices at MB, DB, and P; extend mesially for MB2

Entry PointCentral pit, mesial two-thirds of occlusal surface

Landmarks

Central pit
MB-DB-P triangle

Do Not Invade

Mesial marginal ridge
Oblique ridge

Canal Anatomy

Configurations

4 canals (MB1, MB2, DB, P)~70%

3 canals (MB, DB, P)~30%

Canal Positions

MB1Mesiobuccal 1

Slightly distal to MB cusp tip

DBDistobuccal

Distal and slightly palatal to MB1, in line with buccal groove

PPalatal

Distal to mesiopalatal cusp tip - largest canal

MB2Mesiobuccal 273.8% (CBCT), 71-82% (with microscope)

2 mm palatal and 1-2 mm mesial from MB1

Clinical Tips

🔧

Technique

Rule of 2: MB2 is approximately 2 mm palatal to MB1 (range 2-3.5 mm palatally, ~2 mm mesially) — a clinical starting point for exploration

🔧

Technique

Champagne/Bubble Test: NaOCl effervesces at orifice with organic tissue

🔧

Technique

Use ultrasonic diamond tips (E2D, E6D) for troughing MB-MB2 isthmus

💡

Tip

Dental microscope significantly improves MB2 detection — from ~17% (no magnification) to ~71% (microscope) in comparative studies

Anatomical Variations

MB2 Canal

60-93% (CBCT); ~64-74% in meta-analyses

Second canal in mesiobuccal root, often calcified in older patients. Prevalence varies by study methodology and population.

Access Modification: Convert triangular to rhomboidal shape by extending mesiobuccally

Vertucci Classification

Type	Description	Prevalence
I	Single canal (1-1)	MB: 28%, DB: 98%, P: 99%
II	Two canals merging (2-1)	MB: 16%
IV	Two separate canals (2-2)	MB: 56%

Special Morphology

MB2 Canal

60-93% (CBCT); 71-82% (microscope)

Second canal in mesiobuccal root, runs palatal to MB1. Often calcified in patients >40 years.

Most commonly missed canal in endodontics. Failure to locate MB2 is the primary reason for retreatment of maxillary molars.

MB-MB2 Isthmus

50-60% in apical 5 mm

Thin connecting web between MB1 and MB2 that harbors bacteria and pulp tissue.

Requires ultrasonic troughing and thorough irrigation for debridement.

Root Curvature

Mesiobuccal

DistalModerate to severe

Distobuccal

MesialMild

Palatal

Buccal (apical curve)Mild to moderate

Isthmus Prevalence50-60% in apical 5 mm of MB root

Apical Foramen DeviationMB: 0.5-1.5 mm from radiographic apex; P: 0.5-1.5 mm (up to 1.43 mm documented)

Perforation Risks

Furcation (mesial wall during MB2 search)

High

✓Use microscope — never search blindly
✓Direct ultrasonic tips away from furcation
✓Use Mueller bur or Start-X at low speed

Mesial concavity of MB root (mid-root)

Moderate

✓Limit apical preparation to .04 taper in MB
✓Use flexible heat-treated files (Gold, Blue, CM-Wire)

Calcification Pattern

LikelihoodVery common in patients >50 years

LocationMB2 orifice and coronal third of MB2 canal

ManagementUltrasonic troughing under microscope; EDTA gel; small pre-curved hand files (#06, #08)

Procedural Risks

Missed MB2

30-40% without microscope

Prevention

✓Use dental microscope
✓Champagne test with NaOCl
✓Trough mesial wall with ultrasonics

Management

Re-entry with microscope if post-op symptoms persist

Palatal root perforation (over-instrumentation)

Low but serious

Prevention

✓Confirm WL with apex locator
✓Respect natural canal curvature

Management

MTA repair if detected early

Pre-Op Checklist

Assess MB2 likelihood on pre-op PA (double periodontal ligament line)

Check for root curvature — severe MB curves may require flexible files

Evaluate pulp chamber calcification on radiograph

Consider CBCT if initial PA suggests complex anatomy

CBCT Indications

•Suspected MB2 not located clinically
•Previous failed treatment
•Suspected root resorption or perforation
•Unusual radiographic anatomy

File System Recommendations

Scenario

Severe MB curvature

Use Gold/Blue heat-treated files (.04 taper) — better flexibility and fatigue resistance

Scenario

Calcified MB2

PathFile or ProGlider for mechanical glide path after manual negotiation with #08 K-file

Scenario

Wide palatal canal

May need finishing to .06 or .08 taper for adequate seal

Common Mistakes

✗

Triangular access too small — prevents MB2 visualization

✗

Searching for MB2 too far buccally (it is palatal to MB1)

✗

Aggressive taper files in curved MB root

✗

Ignoring palatal root curvature

Referral Indicators

►MB2 not located after 30 minutes of searching
►Suspected furcal perforation during MB2 exploration
►Calcified canals not negotiable with hand files
►Previous failed RCT requiring retreatment
