Maxillary Lateral Incisor

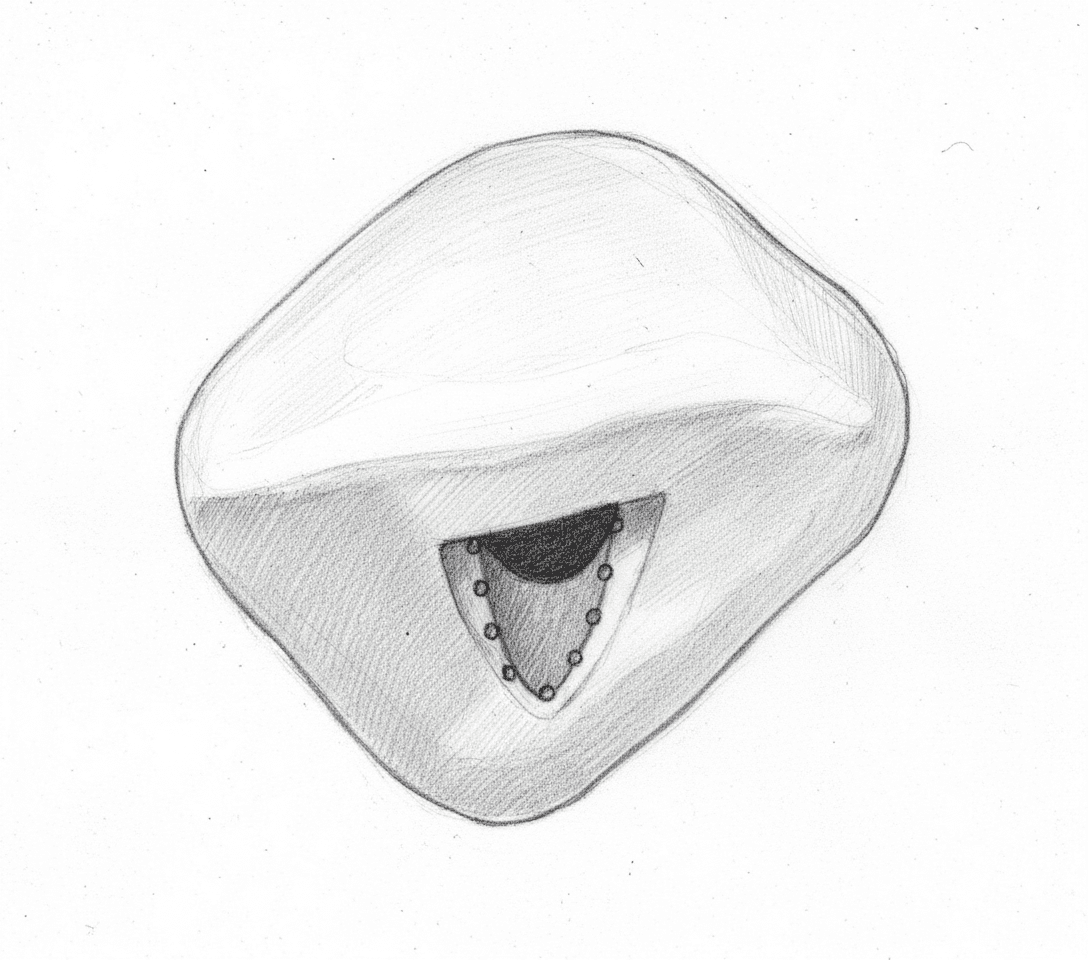

Maxillary Lateral Incisor - Axial View showing ovoid access cavity

Average Length22.0 mm

Root Development11 years

Universal #7, 10

FDI #12, 22

Access Cavity Design

ShapeOvoid

OrientationLonger axis oriented labiopalatally; centered slightly toward incisal on palatal surface

Entry PointPalatal surface, just above cingulum

DimensionsM-D: 1.13 mmB-L: 1.39 mm

Landmarks

Cingulum as inferior boundary of access
Lingual fossa — natural guide for bur placement

Do Not Invade

Incisal edge (preserve for esthetics and function)
Labial wall (esthetic zone — maintain dentin thickness)

Canal Anatomy

Configurations

Single canal (Vertucci Type I)80-85%

Two canals merging (Vertucci Type II, 2-1)10-12%

One-two-one (Vertucci Type III, 1-2-1)3-5%

Two separate canals (Type IV) or other<3%

Canal Positions

MCMain Canal

Ovoid/elliptical cervically, round at mid-root and apex; may bifurcate in middle third

BBuccal Canal

When 2 canals present (Type II/III/IV)

PPalatal Canal

When 2 canals present, often narrower

Danger Zones

⚠Distopalatal root curvature in apical third — risk of ledging, transportation, or separation
⚠Labial perforation if access directed too far labially
⚠Thin root dentin in mid-root — strip perforation risk with aggressive filing

Clinical Tips

Warning

Distopalatal curvature in apical third in ~58% of teeth — pre-curve files and use flexible NiTi

Warning

Check for dens invaginatus on radiograph before access — most common in this tooth (0.25-10%)

Technique

If file appears off-center on radiograph, suspect bifurcation — take angled radiograph (SLOB rule)

Anatomical Variations

Dens Invaginatus (Dens-in-dente)

0.25-10% (most common in lateral incisors)

Invagination of enamel organ into tooth structure. Oehlers Type I: confined to crown (most common). Type II: extends past CEJ into root. Type III: communicates with periodontal ligament or apical foramen.

Access Modification: Type I: modified access to debride invagination. Type II/III: may require combined endodontic-surgical approach or intentional replantation

Two Roots / Two Separate Canals

<3% (rare, documented case reports)

Bifurcation of root in middle or apical third with two separate canals and foramina. May have labial and palatal roots.

Access Modification: Extended labiopalatal access to locate both orifices; CBCT for mapping

Peg-shaped Lateral Incisor

~2.8%

Conical, undersized crown with simplified root canal anatomy. Usually single small canal.

Access Modification: Smaller access cavity; conservative preparation due to reduced dentin thickness

Access Cavity Design

ShapeOvoid

OrientationLonger axis oriented labiopalatally; centered slightly toward incisal on palatal surface

Entry PointPalatal surface, just above cingulum

DimensionsM-D: 1.13 mmB-L: 1.39 mm

Landmarks

Cingulum as inferior boundary of access
Lingual fossa — natural guide for bur placement

Do Not Invade

Incisal edge (preserve for esthetics and function)
Labial wall (esthetic zone — maintain dentin thickness)

Canal Anatomy

Configurations

Single canal (Vertucci Type I)80-85%

Two canals merging (Vertucci Type II, 2-1)10-12%

One-two-one (Vertucci Type III, 1-2-1)3-5%

Two separate canals (Type IV) or other<3%

Canal Positions

MCMain Canal

Ovoid/elliptical cervically, round at mid-root and apex; may bifurcate in middle third

BBuccal Canal

When 2 canals present (Type II/III/IV)

PPalatal Canal

When 2 canals present, often narrower

Danger Zones

⚠Distopalatal root curvature in apical third — risk of ledging, transportation, or separation
⚠Labial perforation if access directed too far labially
⚠Thin root dentin in mid-root — strip perforation risk with aggressive filing

Clinical Tips

Warning

Distopalatal curvature in apical third in ~58% of teeth — pre-curve files and use flexible NiTi

Warning

Check for dens invaginatus on radiograph before access — most common in this tooth (0.25-10%)

Technique

If file appears off-center on radiograph, suspect bifurcation — take angled radiograph (SLOB rule)

Anatomical Variations

Dens Invaginatus (Dens-in-dente)

0.25-10% (most common in lateral incisors)

Access Modification: Type I: modified access to debride invagination. Type II/III: may require combined endodontic-surgical approach or intentional replantation

Two Roots / Two Separate Canals

<3% (rare, documented case reports)

Bifurcation of root in middle or apical third with two separate canals and foramina. May have labial and palatal roots.

Access Modification: Extended labiopalatal access to locate both orifices; CBCT for mapping

Peg-shaped Lateral Incisor

~2.8%

Conical, undersized crown with simplified root canal anatomy. Usually single small canal.

Access Modification: Smaller access cavity; conservative preparation due to reduced dentin thickness

Vertucci Classification

Type	Description	Prevalence
I	Single canal (1-1)	80-85%
II	Two canals merging apically (2-1)	10-12%
III	One canal splitting and rejoining (1-2-1)	3-5%

Special Morphology

Dens Invaginatus (Dens-in-dente)

0.25-10% (highest prevalence of all teeth)

Invagination of enamel organ creating a tooth-within-a-tooth. Oehlers classification: Type I (crown-confined, most common), Type II (extends past CEJ into root), Type III (extends to apex with separate foramen).

Type I may be treated with conventional endo. Type II/III often require combined approaches. Pulp necrosis common due to communication between invagination and pulp. CBCT essential for treatment planning.

Lateral / Accessory Canals

Up to 67%

Small branching canals from main canal to root surface, predominantly in apical and middle thirds.

Cannot be instrumented directly. Thorough irrigation with NaOCl is essential. May explain persistent periapical pathology.

Root Curvature

Single root

Distopalatal (most common)Curvature present in ~58%; mostly moderate (5-20 degrees); primarily in apical third

Apical Foramen DeviationDeviates from radiographic apex in 68-85% of cases; average deviation 0.3-0.52 mm, predominantly in distal direction

Perforation Risks

Labial wall (during access preparation)

Moderate

✓Direct bur toward palatal during initial access
✓Use paralleling radiograph to assess crown-root angle
✓Smaller root than central — less margin for error

Mid-root concavity (during canal shaping)

Moderate

✓Limit taper to .04 in curved canals
✓Anti-curvature filing away from concavity
✓Use flexible heat-treated NiTi files

Calcification Pattern

LikelihoodModerate in patients >40 years; accelerated after trauma history

LocationPulp chamber and coronal third of canal

ManagementEDTA gel; small pre-curved hand files (#08, #10); ultrasonic activation; electronic apex locator essential

Procedural Risks

Ledge or transportation at distopalatal curvature

Moderate — curvature present in ~58% of teeth

Prevention

✓Pre-curve hand files for initial negotiation
✓Use flexible NiTi files (Gold, Blue, or CM-wire)
✓Confirm glide path before rotary instrumentation

Management

Attempt bypass with small pre-curved file; if ledge persists, consider working length adjustment

Dens invaginatus complication

Low overall (0.25-10% have dens invaginatus)

Prevention

✓Pre-op radiograph screening for invagination
✓CBCT if dens invaginatus suspected
✓Plan treatment approach based on Oehlers type

Management

Type I: conventional endo with modified access. Type II/III: combined endo-surgical approach or referral to specialist

Post-treatment discoloration

Moderate if pulp horns not fully debrided

Prevention

✓Extend access to all pulp horns
✓Thorough removal of all coronal pulp tissue
✓Intra-orifice barrier 2 mm below CEJ

Management

Internal bleaching (walking bleach technique)

Pre-Op Checklist

Screen radiograph for dens invaginatus (radiopaque invagination within crown/root)

Assess distopalatal curvature on PA — present in ~58% of teeth

Check for second canal: if file appears off-center on PA, take angled radiograph

Evaluate root length and crown-root angulation for access planning

CBCT Indications

•Suspected dens invaginatus (Oehlers Type II or III)
•Suspected second canal not confirmed on PA
•Complex root curvature or dilaceration
•Retreatment with persistent pathology

File System Recommendations

Scenario

Standard single canal with mild curvature

Any rotary system suitable; .04-.06 taper adequate

Scenario

Moderate-severe distopalatal curvature

Flexible heat-treated files (Gold, Blue, or CM-wire) with .04 taper; pre-curve hand files for glide path

Scenario

Dens invaginatus (Type I)

Small hand files to explore invagination; ultrasonic tips for debridement; MTA for sealing invagination lumen

Scenario

Two-canal configuration

Smaller files (.04 taper, size 20-25) for each canal; careful irrigation protocol

Common Mistakes

✗

Assuming single canal — ~15-20% have Type II/III configurations

✗

Ignoring distopalatal curvature — leads to ledging or transportation

✗

Missing dens invaginatus on pre-op radiograph

✗

Over-instrumentation in thin root — strip perforation risk

✗

Not using angled radiograph to detect canal bifurcation

Referral Indicators

►Dens invaginatus Oehlers Type II or III requiring combined approach
►Severe root dilaceration
►Calcified canal not negotiable after clinical attempt
►Previous failed treatment with persistent symptoms
►Suspected perforation during access or shaping
