NIC® MH
NIC Dental (Shenzhen Superline Technology)
NIC® MH
NIC Dental (Shenzhen Superline Technology)

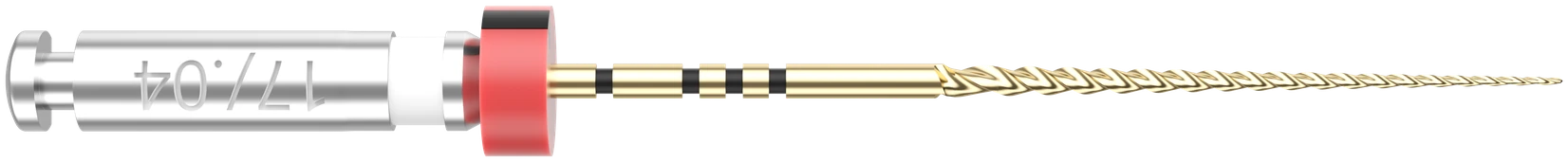

Fourteen constant-taper configurations (17-45 in .04 and .06) in MaxTech High Flex controlled-memory wire, with a 17/.04 pathway file and 25/.04 primary shaper
Continuous Rotation · MaxTech High Flex CM-Wire NiTi
- RPM
- Ncm3.0
- File
- 14
- Verified
Specifications
Tap icons for term definitions
| File | Tip | Taper | SpeedRPM | TorqueNcm | Role |
|---|---|---|---|---|---|
Diameter at the file tip (D0). Larger tips shape wider canals. | |||||
How much the file widens per mm. Higher taper = more aggressive cutting. | |||||
Rotational speed (RPM). Follow manufacturer settings to prevent file breakage. | |||||
Rotational force limit (Ncm). Prevents file fracture by auto-reversing when resistance is too high. | |||||
| MH4 (.04) | |||||
white | 0.17 | 4% | 300-500 | 3.0 | Shaping |
yellow | 0.20 | 4% | 300-500 | 3.0 | Shaping |
red | 0.25 | 4% | 300-500 | 3.0 | Shaping |
blue | 0.30 | 4% | 300-500 | 3.0 | Shaping |
green | 0.35 | 4% | 300-500 | 3.0 | Shaping |
black | 0.40 | 4% | 300-500 | 3.0 | Shaping |
45/.04white | 0.45 | 4% | 300-500 | 3.0 | Shaping |
| MH6 (.06) | |||||
white | 0.17 | 6% | 300-500 | 3.0 | Shaping |
yellow | 0.20 | 6% | 300-500 | 3.0 | Shaping |
red | 0.25 | 6% | 300-500 | 3.0 | Shaping |
blue | 0.30 | 6% | 300-500 | 3.0 | Shaping |
green | 0.35 | 6% | 300-500 | 3.0 | Shaping |
black | 0.40 | 6% | 300-500 | 3.0 | Shaping |
45/.06white | 0.45 | 6% | 300-500 | 3.0 | Shaping |
Clinical Tips
- Motor settings 300-500 RPM / 3.0 Ncm per the manufacturer's consolidated fact sheet (2026-08-12), which supersedes the catalog's earlier 350-400 RPM / 3-3.5 Ncm; the IFU draft itself defers to the product label
- The IFU warns against copying speed or torque settings published for other manufacturers' file systems
- Workflow per the IFU: 17/.04 establishes the rotary pathway, 25/.04 is the primary shaper, and 30-45 are used sequentially only when a larger apical preparation is clinically indicated
- Alloy: the manufacturer's consolidated fact sheet (2026-08-12) names the tier MaxTech High Flex (Controlled Memory Wire) — a newer proprietary heat treatment outside the published 3.0/6.0/9.0 numbering that NIC had earlier positioned closest to its 9.0 CM-class
- CM-wire-class behavior per the IFU: high flexibility, reduced shape memory, and the ability to follow canal curvature without actively straightening the anatomy; the file may show a slight natural curve out of the package
- The size range runs to 45 in both tapers per the IFU and the fact sheet (the 2025 catalog listed 17-40); the two 45 configurations have no product render yet
- Cross-section: parabolic per the manufacturer's consolidated fact sheet (2026-08-12), which restores the catalog's term and supersedes the IFU draft's triangular description; non-cutting guiding tip, 0.8-1.0 mm maximum flute diameter, 11 mm handle
- NIC's own cross-reference table maps the MH File to EdgeEndo X7 — a manufacturer-claimed correspondence, not independently verified
- Constant tapers (.04/.06) are positioned by the manufacturer for straightforward obturation planning with matching points
- Supplied 6 instruments per pack (IFU)
- Specifications on this page come from the manufacturer's consolidated fact sheet (2026-08-12, the controlling source), IFU draft (2026), and 2025 catalog; no independent peer-reviewed performance data exists for this system (PubMed, 2026-08-11)
Warnings
- Single-use only per the manufacturer's IFU — reuse may increase the risk of cross-contamination, loss of cutting efficiency, or file separation
- Supplied non-sterile in this version: sterilize before first clinical use (steam autoclave 134 °C, 18 min holding time per the IFU) and discard after the procedure
- Use only in continuous clockwise rotation with a torque-controlled motor — the IFU directs against reciprocating motion
- Follow the speed and torque on the current NIC label for your files; the IFU warns against carrying over settings from other manufacturers' systems
- Do not use a file from a damaged package, or any instrument showing deformation, unwinding, corrosion, fracture, or wear (IFU)
- Avoid apical pressure: withdraw, irrigate, recapitulate, and use a smaller file rather than forcing advancement (IFU)
- Contains nickel-titanium — the IFU contraindicates use in patients with known allergic sensitivity to the material
- The IFU contraindicates mechanical use in canals with severe, sudden apical curvatures, complex canal divisions, calcified anatomy, or anatomy where safe passive file progression cannot be achieved
Obturation Techniques
Single cone, warm vertical, carrier-based & lateral compaction
Protocol
01Glide Path2
02Shaping2
03Finishing2
Related Systems
From NIC Dental Systems
Manufacturer page
NIC Dental SystemsOther continuous rotation systems
Motion category
Continuous RotationComparisons
Collections
Clinical guides
Frequently Asked Questions
What alloy is NIC MH made from?
What alloy is NIC MH made from?
Answer
NIC® MH is manufactured from MaxTech High Flex CM-Wire NiTi.
How many files are in the NIC MH sequence?
How many files are in the NIC MH sequence?
Answer
The NIC® MH system includes 14 files: 17/.04, 20/.04, 25/.04, 30/.04, 35/.04, 40/.04, 45/.04, 17/.06, 20/.06, 25/.06, 30/.06, 35/.06, 40/.06, 45/.06.
What motion type does NIC MH use?
What motion type does NIC MH use?
Answer
NIC® MH uses continuous rotation motion.
What cases is NIC MH best for?
What cases is NIC MH best for?
Answer
NIC® MH is best suited for: flexible constant-taper shaping in curved canals, 17/.04 pathway plus 25/.04 primary workflow, reduced shape memory that follows canal anatomy.
What speed and torque settings are recommended for NIC MH?
What speed and torque settings are recommended for NIC MH?
Answer
Recommended settings: 300-500 RPM and 3.0 Ncm across the file sequence (refer to official DFU for full per-file parameters).
Reviewed by
Uzm. Dt. Levent Yüksel
DDS · Endodontist
Endodontist — DDS, Hacettepe University; endodontics specialty training, Ankara University. 10+ years of clinical experience. Sole author and reviewer of EndoGuide content.
