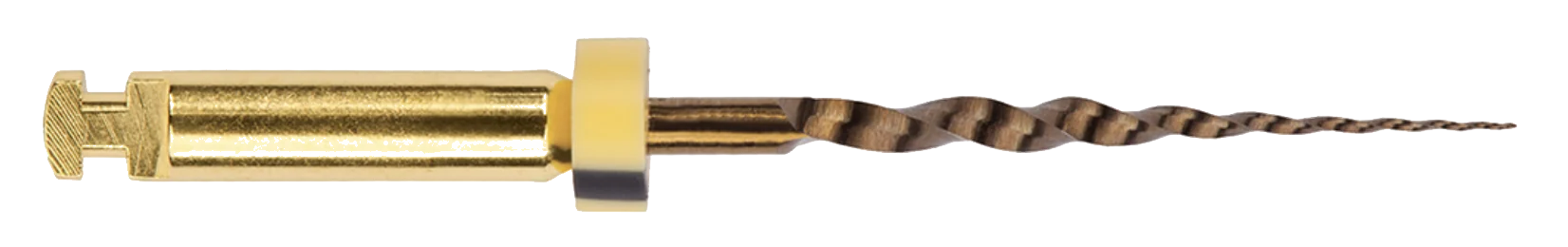

ProTaper Gold®

Speed: 300 RPM constant rotation per the current IFU (2024/2026 revisions); the legacy 2017 DFU permitted a 250-350 RPM range

Current EU/ROW IFU (2024-11 and 2026-02) specifies torque RANGES: 5-6 Ncm (S1, SX), 1.5-2 Ncm (S2, F1), 3-4 Ncm (F2-F5). The North America IFU (2021) keeps flat values of 520/150/312 g·cm (≈5.1/1.5/3.1 Ncm)

Manufacturer reports ~2.4x average cyclic fatigue resistance vs ProTaper Universal (2.6x for the F3 file specifically; internal lab data) — independent bench studies confirm the direction (Hieawy 2015, PMID 25841955; Uygun 2016, PMID 26011308; Elnaghy & Elsaka 2016, PMID 26426295)

Manufacturer reports ~24% increased flexibility vs ProTaper Universal (internal lab data) — independent bench studies confirm greater flexibility, attributed to two-stage (A→R→M) transformation and high Af (Hieawy 2015; Elnaghy & Elsaka 2016)

Bench trade-off: torsional resistance and microhardness are lower than ProTaper Universal (Elnaghy & Elsaka 2016) — respect torque limits and avoid taking an oversized file to length (per US IFU precautions)

Micro-CT: less canal transportation and more preserved dentin thickness than ProTaper Universal in curved canals (Gagliardi 2015, PMID 26321062); vs ProTaper Ultimate and Reciproc Blue, shaping was comparable in moderately curved canals (2026 micro-CT, PMID 41934543)

RCT evidence vs successor ProTaper Ultimate is mixed: one trial found less postoperative pain and greater bacterial reduction with ProTaper Gold in necrotic premolars (PMID 41882642); another found equivalent postoperative pain in mandibular molars (PMID 41211526)

A ≥2-year RCT reported higher healing success with conventional ProTaper Gold treatment than with a minimally invasive TruNatomy protocol (88.7-91.9% vs 71.4-77.8%; PMID 40603366), while a 2026 meta-analysis found no postoperative-pain difference vs TruNatomy (low-certainty evidence, PMID 42030017)

Balancing evidence: one RCT reported higher postoperative pain vs XP-endo Shaper and 2Shape (PMID 36748451), and a 2026 bench meta-analysis found EdgeTaper Platinum's cyclic fatigue resistance higher in most comparisons (high heterogeneity, PMID 42261515)

Shorter 11mm handle allows improved accessibility to posterior teeth (vs 13mm ProTaper Universal handle)

Same exact geometries as ProTaper Universal with advanced gold heat-treatment metallurgy

Convex triangular cross-section and progressive taper enhance cutting action while decreasing rotational friction

Non-cutting tip design with small flat area enhances ability to navigate through soft tissue and debris

Use Shaping files (S1, S2, SX) with brushing action on withdrawal stroke — always brush away from the furcation

Use Finishing files (F1-F5) with non-brushing action — follow canal passively to WL and withdraw immediately (≤1 second at length)

Verify the final shape by inspecting the finishing file's apical flutes for dentinal debris (per manufacturer technique card)

In severe curvatures the current IFU permits using the files manually; for abrupt apical curvature, pre-curved hand files are directed for the apical region instead of rotary

For extremely curved canals the current IFU recommends dedicating a new file to a single canal, preferring small/flexible files, and considering small-angle motions (watch-winding, balanced force) to limit rotational bending fatigue

Files may appear slightly curved out of the pack — a result of the proprietary process, not a defect; straightening before use is unnecessary

Sequence is the same regardless of canal length, diameter, or curvature

Always use minimal apical pressure — never force files; torque-control motors are recommended

Delivered sterile in radiation-sterilized blisters per current IFU (2017-era non-sterile stock required sterilization before first use)

System-matched obturation ecosystem: Conform Fit gutta-percha (variable-taper master cones), matching paper points, obturators (F1-F5) and size verifiers are available (manufacturer)
