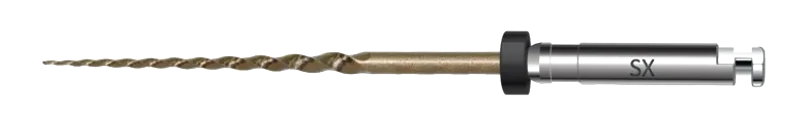

EndoArt® Action

Q: What speed and torque settings are recommended for EndoArt Action?

Recommended settings: 300 RPM and 3.5 / 2.0 / 2.2 / 2.5 / 1.5 Ncm across the file sequence (refer to official DFU for full per-file parameters).

İnci Dental (Turkey)

Continuous Rotation

COURSES11 October 2026 · İzmir · Canal shaping course

İnci Dental (Turkey)

EndoArt® Action

Variable taper design with Gold or Blue heat treatment options

Continuous Rotation · Gold/Blue Heat-Treated NiTi

300

rpm

1.5–3.5

Ncm

File

Verified

Jul 2026

Specifications

Tap icons for term definitions

Action Gold

0.19 · Variable3.5Ncm

0.17 · Variable2.0Ncm

0.20 · Variable2.2Ncm

0.20 · Variable2.5Ncm

0.25 · Variable2.5Ncm

0.30 · Variable2.5Ncm

Action Blue

SX0.19 · Variable3.5Ncm

S10.17 · Variable1.5Ncm

S20.20 · Variable1.5Ncm

F10.20 · Variable2.5Ncm

F20.25 · Variable2.5Ncm

F30.30 · Variable2.5Ncm

File	Tip	Taper	Speed rpm	Torque Ncm
Action Gold
	0.19	Variable	300	3.5
	0.17	Variable	300	2.0
	0.20	Variable	300	2.2
	0.20	Variable	300	2.5
	0.25	Variable	300	2.5
	0.30	Variable	300	2.5
Action Blue
SX	0.19	Variable	300	3.5
S1	0.17	Variable	300	1.5
S2	0.20	Variable	300	1.5
F1	0.20	Variable	300	2.5
F2	0.25	Variable	300	2.5
F3	0.30	Variable	300	2.5

Clinical Tips

Gold wire: x2 cyclic fatigue resistance vs conventional NiTi (per manufacturer product page)

Blue wire: x4 cyclic fatigue resistance vs conventional NiTi, allows pre-bending thanks to control memory (per manufacturer product page)

Blue files can be pre-bent before canal entry due to controlled memory

Speed: 300 RPM for all files. Torque differs by wire and file: Gold SX=3.5, S1=2.0, S2=2.2, F1-F3=2.5; Blue SX=3.5, S1-S2=1.5, F1-F3=2.5 Ncm

Laser-marked length indicators and tip/taper info on handle

Files may appear slightly curved after heat treatment - this is normal

Autoclavable for reuse (inspect before each use)

Warnings

Contains nickel - do not use on patients with nickel allergy
Do not immerse in sodium hypochlorite solution
Inspect for distortion, uneven flutes, dull spots before use
Discard if any unwinding or deformation observed
Multiple reprocessing cycles increase separation risk
Do not use in severe/sudden apical curvatures - risk of separation

Obturation Techniques

Single cone, warm vertical, carrier-based & lateral compaction

Protocol

01Glide Path2

02Shaping4

03Finishing3

Related Systems

From Inci Dental (Turkey) Systems

EndoArt Touch EndoArt Smart EndoArt Expert

Manufacturer page

Inci Dental (Turkey) Systems

Other continuous rotation systems

ProTaper Gold ProTaper Ultimate ProTaper Next

Motion category

Continuous Rotation

Comparisons

EndoArt ActionvsHyFlex EDM EndoArt ActionvsProTaper Gold EndoArt ActionvsReciproc Blue EndoArt ActionvsTruNatomy EndoArt ActionvsWaveOne Gold EndoArt ActionvsXP-endo Shaper

Alloy

Gold Heat Treatment

Use cases

Narrow Canals Wide Canals Mild Curvature Moderate Curvature

Collections

Gold Heat Treatment Rotary Systems EndoArt Systems

Clinical guides

Canal Preparation Irrigation Obturation Complications

Frequently Asked Questions

What alloy is EndoArt Action made from?

Answer

EndoArt® Action is manufactured from Gold/Blue Heat-Treated NiTi.

How many files are in the EndoArt Action sequence?

Answer

The EndoArt® Action system includes 12 files: SX, S1, S2, F1, F2, F3, SX, S1, S2, F1, F2, F3.

What is the EndoArt Action file sequence?

Answer

EndoArt® Action is used in this order: SX → S1 → S2 → F1 → F2 → F3.

01Per-file speed, torque and technique are in the protocol section above.

What motion type does EndoArt Action use?

Answer

EndoArt® Action uses continuous rotation motion.

What cases is EndoArt Action best for?

Answer

EndoArt® Action is best suited for: variable taper shaping, cost-effective alternative, Turkish market.

What speed and torque settings are recommended for EndoArt Action?

Answer

Recommended settings: 300 RPM and 3.

015 / 2.
020 / 2.
032 / 2.
045 / 1.
055 Ncm across the file sequence (refer to official DFU for full per-file parameters).
