MaxillaryTriangular

Maxillary Central Incisor

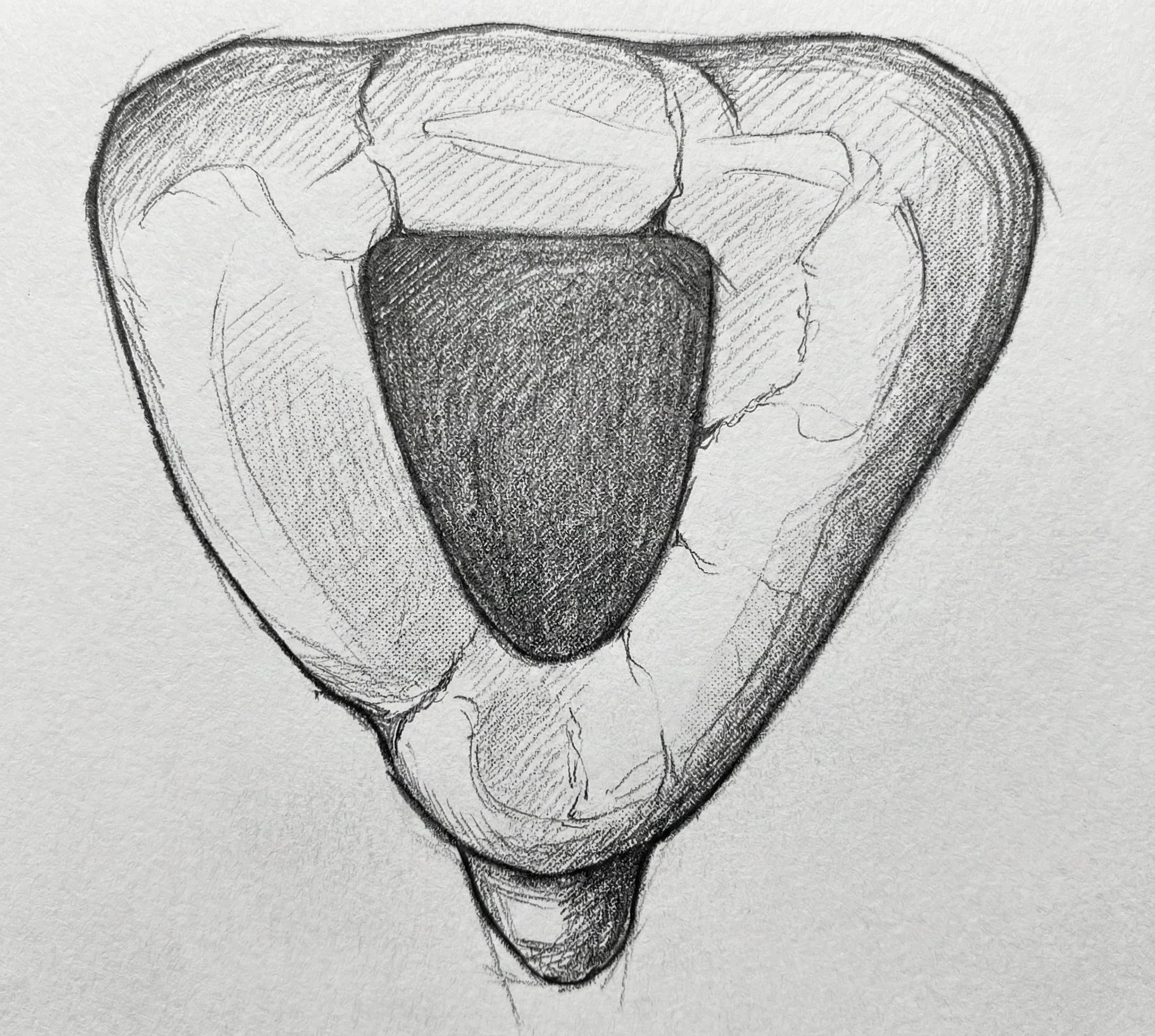

Maxillary Central Incisor - Axial View showing triangular access cavity

Average Length23.0 mm

Root Development10 years

Universal #8, 9

FDI #11, 21

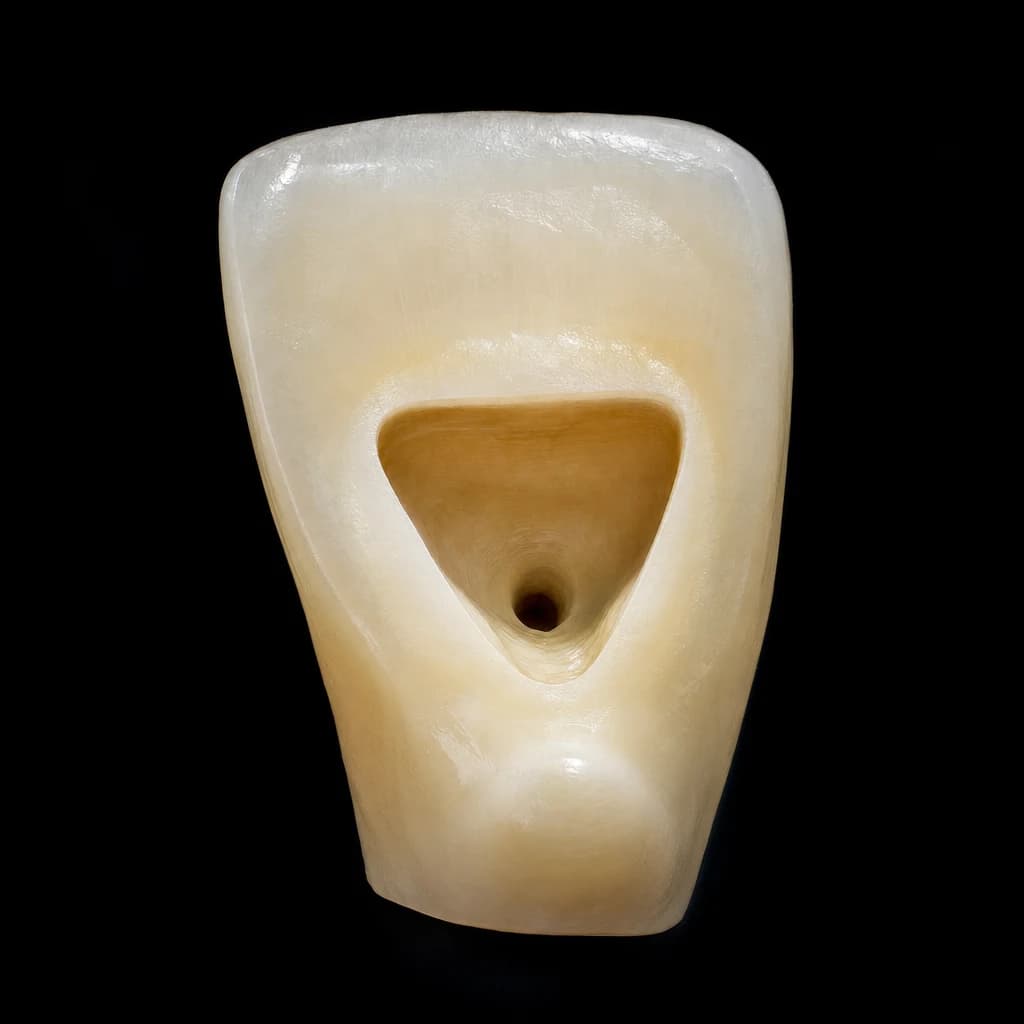

Access Cavity Design

ShapeTriangular/Round

OrientationBase toward incisal edge, apex toward cingulum; centered on palatal surface

Entry PointCenter of palatal surface, just above cingulum

DimensionsM-D: 1.54 mmB-L: 1.51 mm

Landmarks

Pulp horns (typically 3 in young teeth — mesial, distal, central)
Cingulum as inferior boundary of access

Do Not Invade

Incisal edge (preserve for esthetics and function)
Labial wall (esthetic zone — maintain dentin thickness)

Canal Anatomy

Configurations

Single canal~100%

Two canals (rare case reports)<1%

Canal Positions

MCMain Canal

Central, round/circular cross-section at all levels; wide at cervical, progressively constricts toward apex

Danger Zones

⚠Labial perforation risk if bur directed too far labially during access
⚠Proximity to incisive canal/foramen in palatal root apex region

Clinical Tips

💡

Tip

Extend access incisally to expose all pulp horns — prevents discoloration from residual pulp tissue

💡

Tip

Pulp chamber is shallow — minimal drop-in feeling expected

💡

Tip

More than 1/3 of canal is directly visible — ideal for beginners

🔧

Technique

Consider conservative endodontic cavity (CEC) in structurally sound teeth to improve fracture resistance

Anatomical Variations

Two Roots / Two Canals

<1% (rare case reports)

Extremely rare bifurcation of root or canal system, documented in isolated case reports. May be associated with developmental anomalies or trauma history.

Access Modification: Extended access to locate both orifices; CBCT recommended for mapping anatomy

Access Cavity Design

ShapeTriangular/Round

OrientationBase toward incisal edge, apex toward cingulum; centered on palatal surface

Entry PointCenter of palatal surface, just above cingulum

DimensionsM-D: 1.54 mmB-L: 1.51 mm

Landmarks

Pulp horns (typically 3 in young teeth — mesial, distal, central)
Cingulum as inferior boundary of access

Do Not Invade

Incisal edge (preserve for esthetics and function)
Labial wall (esthetic zone — maintain dentin thickness)

Canal Anatomy

Configurations

Single canal~100%

Two canals (rare case reports)<1%

Canal Positions

MCMain Canal

Central, round/circular cross-section at all levels; wide at cervical, progressively constricts toward apex

Danger Zones

⚠Labial perforation risk if bur directed too far labially during access
⚠Proximity to incisive canal/foramen in palatal root apex region

Clinical Tips

💡

Tip

Extend access incisally to expose all pulp horns — prevents discoloration from residual pulp tissue

💡

Tip

Pulp chamber is shallow — minimal drop-in feeling expected

💡

Tip

More than 1/3 of canal is directly visible — ideal for beginners

🔧

Technique

Consider conservative endodontic cavity (CEC) in structurally sound teeth to improve fracture resistance

Anatomical Variations

Two Roots / Two Canals

<1% (rare case reports)

Extremely rare bifurcation of root or canal system, documented in isolated case reports. May be associated with developmental anomalies or trauma history.

Access Modification: Extended access to locate both orifices; CBCT recommended for mapping anatomy

Vertucci Classification

Type	Description	Prevalence
I	Single canal (1-1)	~98-100%

Special Morphology

Accessory / Lateral Canals

24-60% (typically ~40-50%)

Small branching canals from main canal to root surface, most common in apical third and middle third.

Cannot be instrumented directly. Thorough irrigation with NaOCl is essential for debridement. May explain persistent periapical pathology after apparently adequate treatment.

Root Curvature

Single root

Straight (majority), labial or palatal (minority)Straight: ~75%; Mild curvature: ~17%; Moderate: rare

Apical Foramen DeviationDeviates from radiographic apex in 63-68% of cases; average deviation 0.5 mm (0.53 +/- 0.28 mm)

Perforation Risks

Labial wall (during access preparation)

Moderate

✓Direct bur slightly toward palatal during initial penetration
✓Use paralleling radiograph to assess crown-root angulation
✓Maintain awareness of labial dentin thickness

Calcification Pattern

LikelihoodCommon in patients >50 years, especially after trauma history

LocationPulp chamber and coronal third of canal

ManagementEDTA gel; small pre-curved hand files (#08, #10); electronic apex locator essential when WL radiograph is difficult

Procedural Risks

Labial perforation

Low-moderate (common beginner error)

Prevention

✓Angle bur toward palatal during access
✓Use rubber dam clamp as orientation reference
✓Pre-operative radiograph to assess root angulation

Management

MTA or bioceramic repair if detected; monitor with follow-up radiographs

Post-treatment discoloration

Moderate if pulp horns not fully debrided

Prevention

✓Extend access to all pulp horns
✓Remove all coronal pulp tissue thoroughly
✓Place intra-orifice barrier (composite or GIC) 2 mm below CEJ

Management

Internal bleaching (walking bleach technique) if discoloration occurs

Pre-Op Checklist

Assess root length on pre-op PA (longer than expected at 23 mm average)

Check for root curvature in apical third on PA

Evaluate pulp chamber size — may be calcified in older/trauma patients

Note crown angulation relative to root for access direction planning

CBCT Indications

•Suspected rare 2-canal/2-root anatomy
•Previous trauma with suspected root resorption
•Calcified canal not negotiable after clinical attempt
•Persistent periapical pathology after previous treatment

File System Recommendations

Scenario

Standard single canal (majority of cases)

Any rotary system suitable; .04-.06 taper provides adequate cleaning and shaping

Scenario

Calcified canal in older patient

Manual negotiation with #08/#10 K-files first; PathFile or ProGlider for mechanical glide path

Scenario

Wide canal in young patient

May need larger apical preparation (size 40+) for adequate taper and seal

Common Mistakes

✗

Access too far labially — leads to labial perforation

✗

Incomplete removal of pulp horns — causes post-op discoloration

✗

Over-reliance on radiographic apex for WL — foramen deviates in ~65% of cases

✗

Neglecting to check for accessory canals during obturation

Referral Indicators

►Calcified canal not negotiable after reasonable clinical attempt
►Suspected perforation during access
►Complex periapical surgery needed for lateral canal pathology
►Previous failed treatment with persistent symptoms
